Stainless steel short pitch conveyor chain attachments 1

Stainless steel short pitch conveyor chain attachments 1

HANGZHOU EPT chain industries Co.,Ltd.

0

Views: 360

E-mail:[email protected]

Product Details

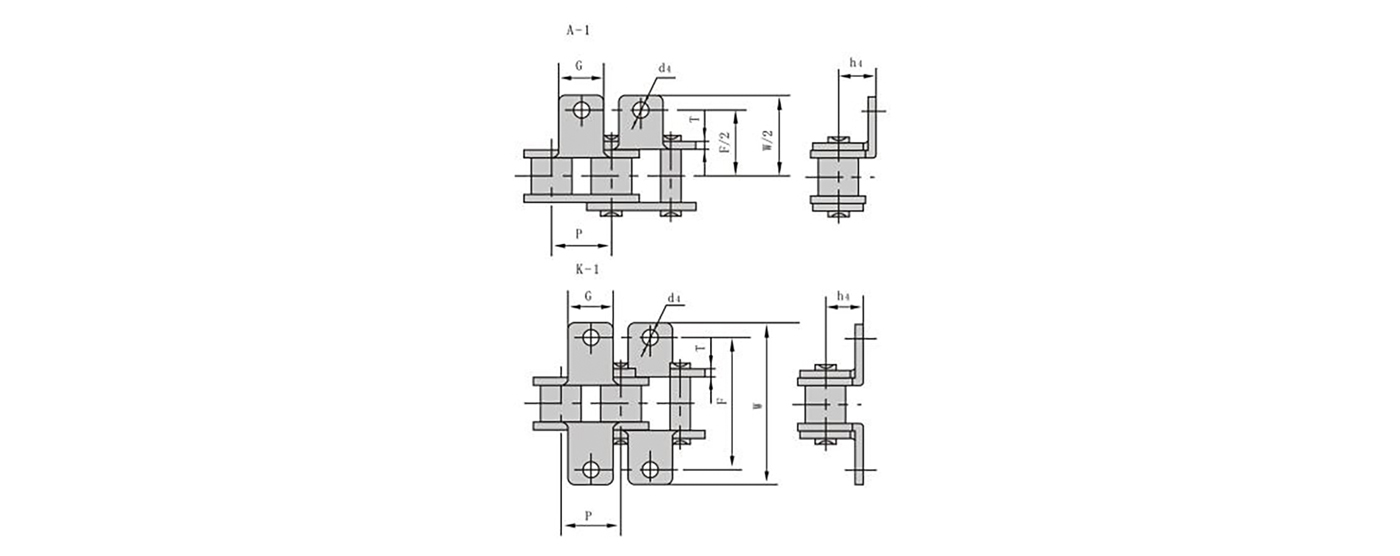

DIN/ISO Chain No.	ANSI Chain No.	P	G	F	W	T	h4	d4
DIN/ISO Chain No.	ANSI Chain No.	mm	mm	mm	mm	mm	mm	mm
08ASS	40	12.700	9.5	25.40	35.2	1.50	7.90	3.40
10ASS	50	15.875	12.7	31.75	46.2	2.00	10.30	5.50
12ASS	60	19.050	15.9	38.10	55.6	2.40	11.90	5.50
16ASS	80	25.400	19.1	50.80	64.8	3.25	15.90	6.850
20ASS	100	31.700	25.4	63.50	89.8	4.00	19.80	9.20
08BSS		12.700	9.5	25.40	36.4	1.60	8.90	4.50
10BSS		15.875	14.3	31.75	44.6	1.70	10.31	5.30
12BSS		19.050	16.0	38.10	52.4	1.85	13.46	6.40
16BSS		25.400	19.1	50.80	72.6	3.10	15.88	6.40
20BSS		31.750	35.0	63.50	100.5	3.50	19.80	9.00
